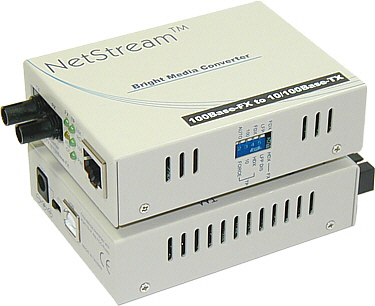

10/100 RJ45 to ST Multi-mode Fiber Optic Media Converter FE-C130T

Fiber Optic ST Media Converter: 10/100Mbps RJ-45 < > 100Base FX ST MULTI-MODE 2km USB LFP.
Price is for 1 unit, you may need 2 units for both ends.

Our PriceUS$85.95

Retail Price ~~US$119.00~~

CodeFE-C130T

Qty

Save wishlist

Add to comparison chart | Compare Products

100Base-FX <> 10/100Base-TX LFP Media Converter

TECHNICAL SPECIFICATIONS

Model: FE-C130C / FE-C130T / FE-C130SC.S20 / FE-C130SC.S400 / FE-C130SC.S60

Standards: IEEE 802.3u 100Base-FX, 10/100Base-TX

Connectors:

Model #	Connector A	Connector B	USB Port
FE-C130C	Multi-Mode Duplex-SC, 1310nm	RJ-45 (auto MDI/MDI-X selection)	Type-B for optional self-powered USB cable
FE-C130T	Multi-Mode Duplex-ST, 1310nm
FE-C130M	Multi-Mode MT-RJ, 1310nm
FE-C130SC.S20	Single-Mode Duplex-SC, 1310nm
FE-C130SC.S40	Single-Mode Duplex-SC, 1310nm
FE-C130SC.S60	Single-Mode Duplex-SC, 1310nm

dBm:

Model #	Connector	Max TX Pwr	Min TX Pwr	Sensitivity	Power Budget
FE-C130C	MM Duplex-SC	-14 dBm	-19 dBm	-30 dBm	11 dB
FE-C130T	MM Duplex-ST	-14 dBm	-19 dBm	-30 dBm	11 dB
FE-C130M	MM MT-RJ	-14 dBm	-19 dBm	-30 dBm	11 dB
FE-C130C20	SM-20 Duplex-SC	-8 dBm	-15 dBm	-31 dBm	16 dB
FE-C130C40	SM-40 Duplex-SC	-2 dBm	-8 dBm	-34 dBm	26 dB
FE-C130C60	SM-60 Duplex-SC	0 dBm	-5 dBm	-34 dBm	29 dB

Data Transfer Rate (Mbps):
100 for FX port
Auto-negotiation 10/100, Force 100, or Force 10 for TX port selectable by DIP-Switch (S1-Bit1 and S1-Bit2)

Duplex Mode:
Full or Half for FX port selectable by DIP-Switch (S1-Bit5)
Auto-sensing Full/Half, Force Full, or Force Half for TX port selectable by DIP-Switch (S1-Bit3)

MAC Address Table: 2k

Buffer Memory: 384K

Cable/Max Distance:
Category 5 UTP, up to 100 m
50/125, 62.5/125, or 100/140µm Multi-Mode fiber, up to 2 km
8.3/125, 8.7/125, 9/125, or 10/125µm Single-Mode fiber, up to 20~60 km (model dependent)
Type-B to Type-A USB cable, up to 5 m

LEDs:

	LED	Color	Function Description
Unit	POWER	Green	Lit when 5V power ON
FX Port	FX LNK/ACT	Green	Lit when both fiber & TP connection are good Blink when fiber data is present
	FX FDX/COL	Amber	Lit when full-duplex mode is active OFF when half-duplex mode is active Blink when collision is receiving
TX Port	TX LNK/ACT	Green	Lit when TP connection is good Blink when TP data is present
	TX 100	Green	Lit when TP speed is 100Mbps OFF when TP speed is 10Mbps

Power Requirement:
1A@+5V DC from AC-DC Adapter, or
0.5A@+5V DC from USB Port via a USB cable (Sold Separately)

Operating Temperature: 0° to 50° C

Humidity: 5% to 90%

Dimension: 26.2 x 70.3 x 94 mm (H x W x D)

EMI Rating: FCC Class A, CE Mark

ADDITIONAL FEATURES

Link Fault Pass-Through (LFP):

LFP function only takes effect as S1-Bit4 is enabled. Disable S1-Bit4 will turn this media converter into a general one. The LFP function works only when both two converters own this capability in pairs. Furthermore, both LFP converters should be supplied only by the same manufacturer/vendor. The connection coming from LFP converters with odd models or non-LFP converters will cease the LFP function. For example:

USB Self-powered:

With the optional USB cable (sold separately), power can be drawn directly from your notebook's or desktop's USB port
without using an external power adapter.
