TECHNICAL SPECIFICATIONS
|
|

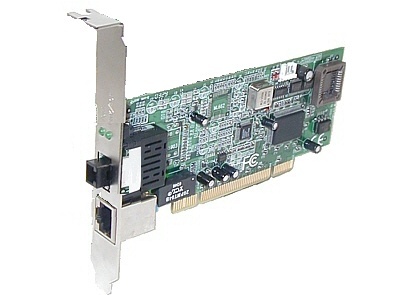

Model: FE-1510SC / FE-1510ST / FE-1510MT |
|
|
Standards: IEEE 802.3u 100Base-FX/TX, IEEE 802.3 10Base-T |
|
|
Bus Architecture: 32-Bit PCI |
|
|
Connector:
|
Model # |
Connectors |
Wavelength for Fiber connector |
|
FE-1510SC |
Multi-Mode Duplex-SC & RJ-45 * |
1310 nm |
|
FE-1510ST |
Multi-Mode Duplex-ST & RJ-45 * |
1310 nm |
|
FE-1510MT |
Multi-Mode MT-RJ & RJ-45 * |
1310 nm |
|
* Note: Fiber port and TP port CANNOT BE USED SIMULTANEOUSLY, i.e. use one connector at a time. Best way to switch between them is to power down your system first, then select the desired connector. |
|
|
|
Data Transfer Rate: 100 Mbps for FX, 10/100Mbps (auto-negotiation) for TX |
|
|
Duplex Mode: Full or Half (Device driver selectable) for FX, Full or Half (auto-sense) for TX |
|
|
Cables/Max. Distance:
50/125, 62.5/125, 100/140µm Multi-Mode fiber, maximum distance 2 km
Category 5 Unshielded Twisted-Pair (UTP), maximum distance 100 m |
|
|
LEDs: Link/ ACT, FDX |
|
|
Power Requirement: 1A@+5V |
|
|
Operating Temperature: 0° to 50° C |
|
|
Humidity: 5% to 90% |
|
|
PCB Dimension: 62 x 147 mm (H x W) |
|
|
EMI Rating: FCC Class A, CE Mark |
DEVICE DRIVERS
|
|
Microsoft Windows 95OSR2/98/98SE/ME/NT 4.0/2000/XP |
|
|
Novell NetWare Server v3.12/4.0/4.1x/5.0 |
|
|
Novell NetWare DOS ODI Client |
|
|
Packet Driver |
|
|
Linux (no Technical Support provided) |
LAN Drivers: afp2x00va2.exe, Rev A.2 (2004-03-24)
