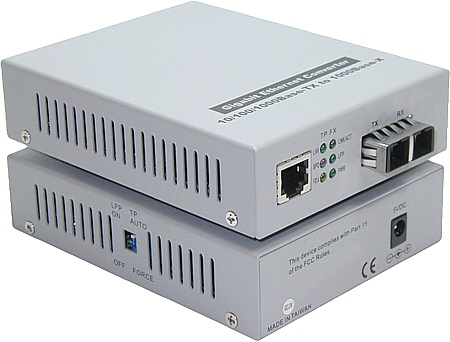

10/100/1G to 1G MM SC 850nm Media Converter GE-C100ZSC-202

10/100/1G to 1G MM SC 850nm Media Converter GE-C100ZSC-202

10/100/1000Mbps Copper to 1000Mbps Multi-Mode Duplex-SC 850nm Fiber Optics Media Converter

Our PriceUS$208.00
Retail Price US$249.00
Save wishlist

  • Standards: IEEE 802.3z 1000Base-SX, IEEE 802.3ab 1000Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3 10Base-T
  • Connectors:
    Multi-Mode Duplex-SC 850nm
    RJ-45 (auto MDI/MDI-X selection)
    If TP FORCE mode is enabled (i.e. SW1-2=ON), RJ-45 connector can only run at 1000 Mbps. Speed other than that will not be supported.
  • Data Transfer Rate:
    1000 Mbps for Gigabit fiber (1000Base-SX)
    1000, 100, or 10 Mbps (auto-negotiation) or 1000 Mbps (force mode) for Gigabit copper (1000Base-T)
    100 or 10Mbps (auto-negotiation) for Fast Ethernet copper (10/100Base-TX)
  • Duplex Mode:
    Full-Duplex only for 1000Base-SX/T
    Full-/Half-Duplex (auto-sense) for 10/100Base-TX
  • Cable/Max Distance:
    Category 5 Unshielded Twisted-Pair (UTP) cable or better, up to 100 m
    62.5/125µm or 50/125µm (recommended) Multi-Mode fiber, up to 220 m
  • Power Requirement: External Power Converter 2A up @+5V DC, 5W consumption
  • Operating Temperature: 0° to 50° C
  • Humidity: 5% to 90%
  • Dimensions: 31 x 97.8 x 127.1 mm (H x W x D), Metal Chassis
  • EMI Rating: FCC Class A, CE Mark
