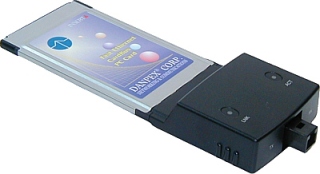

AFC1500MT: 32-Bit CardBus 100Base-FX Multi-Mode MT-RJ, 1310nm PC Card
TECHNICAL SPECIFICATIONS
- Model:
AFC1500SC / AFC1500ST / AFC1500MT
AFC1500SCM / AFC1500STM / AFC1500MTM { Discontinued }
- Standards: IEEE 802.3u 100Bas-FX, PCMCIA Type II CardBus PC Card
- Bus Architecture: 32-Bit CardBus
- Connector:
AFC1500SC — Multi-Mode Duplex-SC, 1310nm
AFC1500ST — Multi-Mode Duplex-ST, 1310nm
AFC1500MT — Multi-Mode MT-RJ, 1310nm
AFC1500SCM — Multi-Mode Duplex-SC Metal Receptacle, 1310nm
AFC1500STM — Multi-Mode Duplex-ST Metal Receptacle, 1310nm
AFC1500MTM — Multi-Mode MT-RJ Metal Receptacle, 1310nm
- dBm [ Min TX, Max TX, Sensitivity, Power Budget ]:
AFC1500SC [ -19dBm, -14dBm, -30dBm, 11dB ]
AFC1500ST [ -19dBm, -14dBm, -30dBm, 11dB ]
AFC1500MT [ n/a, n/a, n/a, n/a ]
AFC1500SCM [ n/a, n/a, n/a, n/a ]
AFC1500STM [ n/a, n/a, n/a, n/a ]
AFC1500MTM [ n/a, n/a, n/a, n/a ]
- Data Transfer Rate: 100Mbps
- Duplex Mode: Full
- Cable: 50/125, 62.5/125, 100/140µm Multi-Mode fiber
- Maximum Cable Distance: 2km
- LEDs: Link, Activity
- Power Requirement: 0.5A@+3.3V, 0.5A@+5V
- Operating Temperature: 0° to 50° C
- Humidity: 5% to 90%
- Dimension: 16 x 54 x 140mm (H x W x D)
- Safety: FCC Class B, CE Mark Approval, RoHS Compliance
DEVICE DRIVERS
- Microsoft Windows 98/98SE/ME/2000/XP
- Novell NetWare Client DOS ODI
- Linus kernel 2.4 & 2.6 (Redhat 9.x & Fedora Core 2)
[ NO TECHNICAL SUPPORT PROVIDED! ]
- Card Enabler
