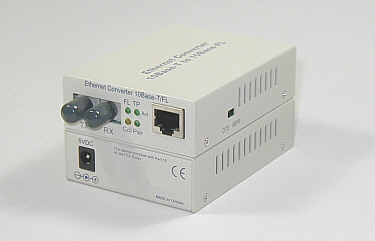

10BASE-T RJ45 to ST Multimode Fiber Media Converter

10BASE-T RJ45 to ST Multimode Fiber Media Converter

Fiber Optics Media Converter: 10BASE-T RJ-45 < > 100Base FL ST Multi-mode 2km half duplex.


Our PriceUS$105.95
Retail Price US$119.00
CodeET-109RST

Save wishlist

TECHNICAL SPECIFICATIONS

Model:  ET-109RST/CEM1500
Standards:  IEEE 802.3 10Base-FL/T
Connectors:
Model # Connector A Connector B
ET-109RST Multi-Mode Duplex-ST 850nm RJ-45
dBm:
Model # Connector Max TX Pwr Min TX Pwr Sensitivity Power Budget
ET-109RST MM Duplex-ST -10 dBm -16 dBm -29.5 dBm 13.5 dB
Data Transfer Rate:  10 Mbps
Duplex Mode:  Half
Cable/Max Distance:
Category 3/4/ 5 UTP, up to 100 m
50/125, 62.5/125, or 100/140µm Multi-Mode fiber, up to 2 km
LEDs:
Unit — Power, COL
TX Port — Link/Act
FX Port — Link/Act
Power Requirement:  2A@+5V DC
Operating Temperature:  0° to 50° C
Humidity:  5% to 90%
Dimension:  26.2 x 70.3 x 94 mm (H x W x D)
EMI Rating:  FCC Class A, CE Mark
